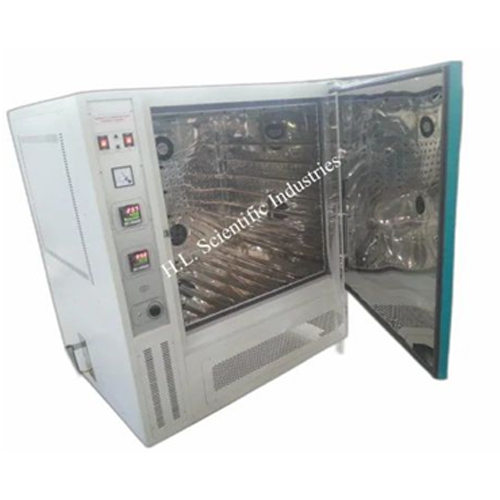

Environmental chamber

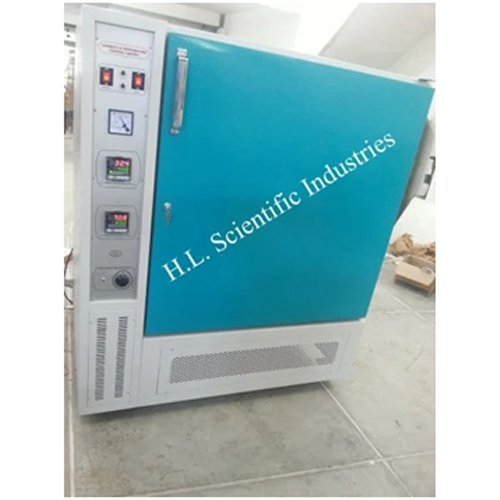

Environmental chamber - Image 2

1. Provided with refrigration system to control temperature range from 10C to 60C +- 2C and humidity 55% to 95% +- 5%.
2. Temperature and Humidity can be controlled through Microprocessor Based Digital Temp. & Humidity Indicator cum controller.
3. Double wall, inner made of Stainless Steel,outer made of thick best quality Mild Steel with powder coated.
4. Insulation between inner and outer wall is done with glass wool to prevent any heat loss.
5. Inner chamber is provided with 3Nos. perforated Stainless Steel shelves with ribs to adjust the shelves at desirable height.
6. Provided with Air Circulation fan in the chamber for uniformity of temperature.
7. Timer 1minute to 99hrs.
8. Provided with double door,inner made of thick transparent full view glass and outer door is double walled metallic properly insulated with glass wool and also provided with best quality handle,gasket etc.
9. With water level indicator.
10. Whole unit is mounted on castor wheels.
11. Interior Chamber with flourescene tubes.
12. Shape & Size can be vertical in size with panel attached on top or side panel(as per client requirement).
13. Leakproof positive locking arrangement will be there.
14. CFC free ECO friendly compressor.
15. To work on 220/230volts A.C.

Category:

Description

H.L. Scientific Industries, established in 1963, is a prominent manufacturer and exporter of laboratory equipment, including environmental chambers. Their environmental chambers are designed to simulate various environmental conditions, making them suitable for applications such as stability studies, controlled temperature and humidity testing, and other laboratory requirements.

Key Features of H.L. Scientific Industries’ Environmental Chambers:

  • Temperature and Humidity Control: The chambers offer a temperature range from 10°C to 60°C with an accuracy of ±0.2°C, and a humidity range from 55% to 95% with an accuracy of ±2% RH. These parameters are controlled through a microprocessor-based digital temperature and humidity indicator cum controller. ​

  • Construction: Featuring a double-walled design, the inner chamber is made of stainless steel, while the outer chamber is constructed from thick, high-quality mild steel with a powder-coated finish. Insulation between the walls is achieved using glass wool to prevent heat loss. ​

  • Shelving and Interior: The inner chamber includes three perforated stainless steel shelves, adjustable to desired heights. An air circulation fan ensures uniform temperature distribution within the chamber. ​

  • Doors and Viewing Features: Equipped with double doors, the inner door is made of thick transparent glass for clear viewing, while the outer door is double-walled and properly insulated with glass wool. The outer door also features high-quality handles and gaskets for a secure seal.

  • Additional Features: The chamber includes a water level indicator, is mounted on castor wheels for mobility, and has interior fluorescent lighting. The design can be customized to be vertical with the control panel attached on top or side, as per client requirements. A leak-proof positive locking arrangement and CFC-free eco-friendly compressor are also standard features. ​H.L Scientific Industries

Technical Specifications:

  • Temperature Uniformity: ±1°

  • Humidity Uniformity: ±3% RH​

  • Chamber Size: 900x600x600 mm (approximately 336 liters capacity)​

  • Power Supply: Designed to operate on 220/230 volts A.C.​

These environmental chambers are suitable for various stability studies, including conditions such as 25°C & 60% RH, 40°C & 75% RH, and 30°C & 65% RH. They are also designed to accommodate low humidity conditions like 25°C & 40% RH, 40°C & 25% RH NMT, and 30°C & 35% RH.

Temperature Range : 20 DegreeC to 60 DegreeC Accuracy : +- 0.2 DegreeC
Humidity Range :40% RH to 95% RH Accuracy : +-2% RH
Temperature Uniformity : +-1 DegreeC Humidity Uniformity : +- 3% RH



  • Temperature & Humidity Suitable for 25 DegreeC& 60% RH, 40 DegreeC& 75% RH, 30 DegreeC& 65% RH
  • Specially designed chambers to carry out stability studies at low humidity conditions such as 25 DegreeC& 40% RH, 40 DegreeC& 25% RH NMT, 30 DegreeC& 35% RH



Chamber Size In Mms Inches Cap.
900x600x600 (36″x24″x24″) 336l

Humidity System

Humidity is by steam injection. Humidity system consist of boiler tank, which is fitted with two nos. of boiler heaters, one heater works as a stand by and automatic switch over to stand by heater if regular fails and give alarm.A water reservoir tank is connected to the boiler tank. DM water is preferred. A magnetic float switch provided for safety for boiler low level to cut off the its supply.

Alarms

Audio and visual alarms are generated for temperature / humidity variation, utility failure.

Safety

The unit is provided with safety devices for temperature, and humidity over shoot in case of malfunction.

Chamber Size 900x600x600 mm
Model/ Code HL-2111
Temperature Range 10 Degree C to 60 Degree C
Voltage 220/230 V
Country of Origin Made in India
Brand Physilab
Usage/Application For Laboratory
