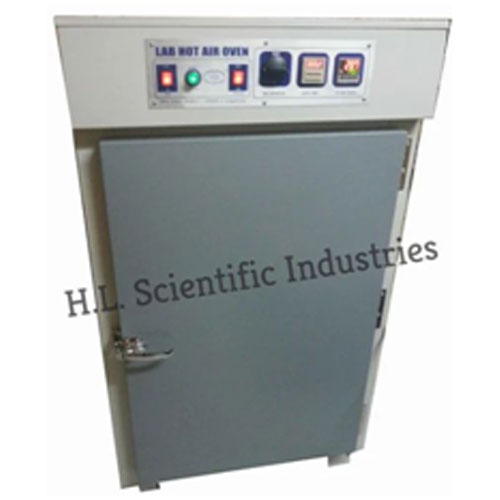

Hot Air Oven Universal Memmert Type (Elements on Three Sides)

Hot Air Oven temperature range from few degree above ambient to 250oC is controlled by a precision thermostat with sensitivity of plus minus ±2%oC. Hot air oven heating elements are placed in ribs at the bottom and sides. In the chamber 2 removable shelves are provided. Adjustable air ventilators are placed near the top of the side’s. Built in L shape thermometer. Double walled inside anodized aluminum/stainless steel. Outside mild steel painted in epoxy powder coating with perforated adjustable shelves. Two indicators, thermostate and on/off switch. To work on 220/230 volts A.C. supplied with or without air circulating fan.

Category:

Description

​H.L. Scientific Industries, established in 1963, is a renowned manufacturer and exporter of precision-engineered laboratory instruments, including a diverse range of hot air ovens designed for various scientific and industrial applications. ​

Product Range:

  1. Universal Memmert Type Hot Air Oven (Elements on Three Sides):

    • Temperature Range: Ambient +5°C to 250°C, controlled by a precision thermostat with a sensitivity of ±2°C.

    • Construction:

      • Interior: Double-walled, made of anodized aluminum or stainless steel.

      • Exterior: Mild steel with an epoxy powder coating.

    • Features:

      • Heating elements positioned at the bottom and sides for uniform heat distribution.

      • Two removable perforated adjustable shelves.

      • Adjustable air ventilators near the top sides.

      • Built-in L-shaped thermometer.

      • Equipped with two indicators, thermostat, and on/off switch.

    • Optional Accessories:

      • Air circulating fan.

      • Digital temperature indicator cum controller.

      • Imported timer.

      • PID digital temperature controller.

    • Available Sizes and Capacities:

      • 300 x 300 x 300 mm (12″ x 12″ x 12″) – 28 liters.

      • 350 x 350 x 350 mm (14″ x 14″ x 14″) – 45 liters.

      • 400 x 400 x 400 mm (16″ x 16″ x 16″) – 65 liters.

      • 450 x 450 x 450 mm (18″ x 18″ x 18″) – 95 liters.

      • 600 x 450 x 450 mm (24″ x 18″ x 18″) – 125 liters.

      • 600 x 600 x 600 mm (24″ x 24″ x 24″) – 224 liters.

      • 900 x 600 x 450 mm (36″ x 24″ x 18″) – 252 liters.

      • 900 x 600 x 600 mm (36″ x 24″ x 24″) – 336 liters.

      • 900 x 900 x 900 mm (36″ x 36″ x 36″) – 720 liters. ​

  2. Laboratory Ovens:

    • Types Available:

      • Gravity Convection Ovens: Ensure uniform heat distribution through natural convection, suitable for gentle drying and sterilization.

      • Forced Air Convection Ovens: Utilize a powerful fan system for rapid and uniform heating, ideal for applications requiring faster drying or curing.

      • Vacuum Ovens: Create a controlled environment with reduced pressure, perfect for drying and curing heat-sensitive materials.

      • Hybrid Ovens: Combine gravity and forced air convection technologies, offering versatility for various applications.

      • Industrial Ovens: Designed for large-scale operations such as heat treatment, baking, and annealing processes. ​

Quality Assurance: H.L. Scientific Industries prioritizes quality and reliability, with experienced engineers and technicians ensuring each oven meets high standards of performance and durability. ​

Customization Options: Understanding that clients may have unique requirements, the company offers customization in terms of size, temperature range, specialized features, and accessories. ​

After-Sales Support: Comprehensive after-sales services include installation assistance, training, and prompt technical support to ensure smooth operation and optimal performance of the laboratory ovens.
