Description

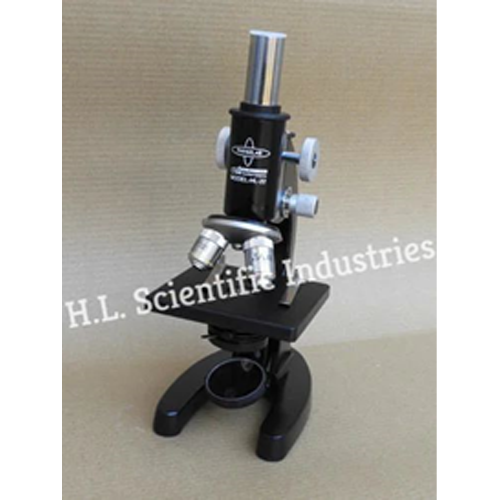

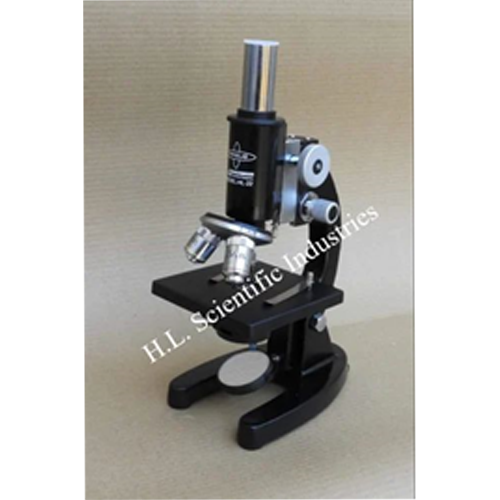

Student Compound Microscope (HL-22)
Body:-Well designed heavy & sturdy die-casted monocular body inclinable to 900 suitable to meet the needs of college and school students.
- Tube with mechanical length 160mm.
- Focusing by separate coarse fine focusing knobs with triple revolving nose piece,horse shoe base.
- Square stage 120x120mm with clips for holding the slide.
- Double lens bright field ABBE Condenser(N.A. 1.25) is fixed with the stage with iris diaphragm and swing out filter holder.
- Illumination is done in Student Compound Microscope by plano concave mirror in fork mount.
Optical Combination:
Anti Fungal Objectives:4/5x, 10x, 45x(SL)
Eye Piece:10x, 15x(Huygenian)
Packing: In thermocouple case with dust cover.
