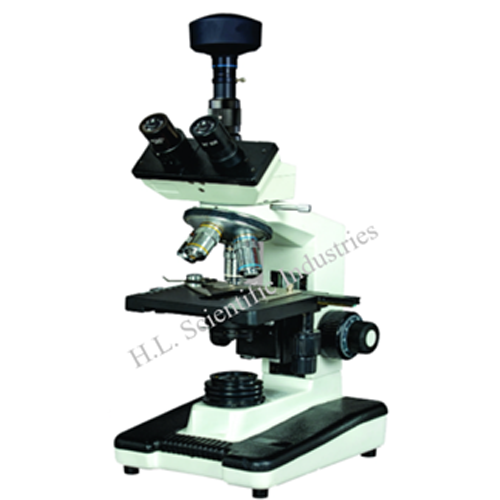

Trinocular Research Microscope

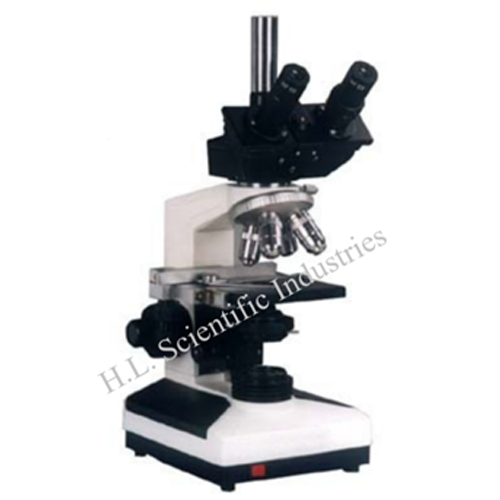

Trinocular Research Microscope - Image 2



Model Name/Number HL-110
Brand Physilab
Light Source LED
Power Supply Electricity
Product Type Used in research, Medical, Educational Institutions
Head Inclined 45 Degree
Rotatable 360 Degree

Category:

Description

Trinocular research microscope designed to meet the needs of research, medical and educational institutions. Ball bearing guide ways in slide ensure highly sensitive focusing system and co-axial focusing system provides highest degree on working convenience.

A rigid and heavy stand observation trinocular head inclined at 450° and rotatable in 360° assembled from imported prism to ensure highly accurate collimation for strain free observation.


Having heavy duty ball bearing quadruple revolving nose piece.

Fixed square stage with built in co-axial mechanical stage, graduated quadruple revolving nose piece.

Double lens bright field abbe condenser (N. A. 1. 25) with iris diaphragm and swing out filter holder moveable by rack & pinion.

Illumination built-in base LED light with electrical system and on/off switch. Also provided with Plano concave ref.



Objectives Semi Plan DIN 4x -10x-40x SL and 100x SL Oil immersion
Eyepieces DIN Size Wide field WF 10x andH5xorH6xorH15x (any two pairs).



The Trinocular Research Microscope from H.L. Scientific Industries is engineered to fulfill the rigorous demands of research, medical, and educational applications. Below are its detailed specifications:​

Optical System:

  • Viewing Head: Trinocular head inclined at 45° and rotatable 360°, assembled with imported prisms to ensure precise collimation for strain-free observation. ​

Eyepieces and Objectives:

  • Eyepieces: Wide-field 10x/18mm.

  • Objectives: Anti-fungal achromatic objectives including 4X, 10X, 40X, and 100X (oil immersion, spring-loaded).​

Nosepiece:

  • Quadruple revolving nosepiece with heavy-duty ball bearings for smooth objective changes. ​

Stage:

  • Fixed square stage equipped with a built-in co-axial mechanical stage, facilitating precise slide manipulation. ​

Condenser:

  • Bright field Abbe condenser (N.A. 1.25) with iris diaphragm and swing-out filter holder, adjustable via rack and pinion mechanism. ​

Focusing Mechanism:

  • Co-axial coarse and fine focusing system with ball-bearing guideways, ensuring highly sensitive and accurate focusing. ​

Illumination:

  • 6V 20W halogen lamp or 3W LED, with adjustable brightness to suit various observation needs.​

Optional Accessories:

  • Micro photography camera (SLR), dark field condenser, release cord, and adaptors for camera integration.
