U.V. Transilluminator

Description



Parameters	Model : HLSI-UVT-60	Model : HLSI-UVT-50	Model : HLSI-UVT-40
Item	U. V. Transilluminator smart look, very accurate research work.	U. V. Transilluminator smart look, very accurate research work accurate for research.	U. V. Transilluminator Very for small look Portable, very work.
Dual Intensity	302 and 365nm	302	302nm
No. of Tubes	6	6	LED Base
Wattage	8 Watts	8 Watts	LED base
Detection limit	0.01 ngm. of stained DNA.	0.01 ngm. of stained DNA.	0.01 ngm. of stained DNA.
View area	210x260mm	210x260mm	150x80mm
Filter	Quartz UV filter	Quartz UV filter	Quartz UV filter
Body	Aluminum pressure die casted body furnished in Black powder coating	Aluminum pressure die casted body furnished in Black powder coating	Aluminum pressure die casted body furnished in Black powder coating
UV Protection Shield	Yes.	Yes.	Yes.



H.L. Scientific Industries offers a range of U.V. Transilluminators designed for laboratory applications. These devices are essential for visualizing nucleic acids and proteins stained with fluorescent dyes. The company provides three primary models, each tailored to specific research needs:​

1. Model: HLSI-UVT-60

• Dual Intensity: Capable of operating at 302 nm and 365 nm wavelengths.​

• Number of Tubes: Equipped with six tubes.​

• Wattage: Each tube has a power rating of 8 watts.​

• Detection Limit: Sensitive enough to detect 0.01 ng of stained DNA.​

• Viewing Area: Offers a spacious 210 x 260 mm area for sample observation.​

• Filter: Incorporates a Quartz UV filter for enhanced clarity.​

• Body Construction: Features an aluminum pressure die-cast body with a black powder coating for durability.​

• UV Protection Shield: Includes a protective shield to ensure user safety.​

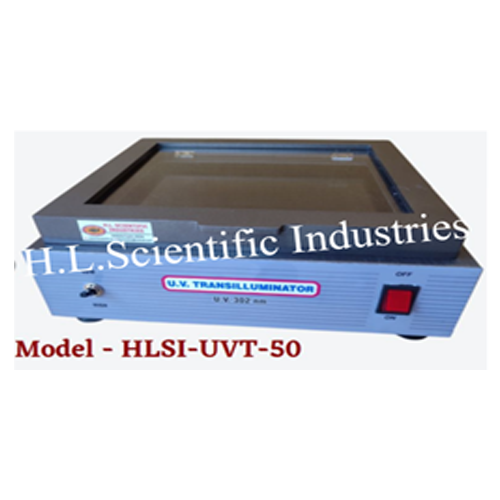

2. Model: HLSI-UVT-50

• Wavelength: Operates at a fixed 302 nm wavelength.​

• Number of Tubes: Contains six tubes.​

• Wattage: Each tube is rated at 8 watts.​

• Detection Limit: Capable of detecting as little as 0.01 ng of stained DNA.​

• Viewing Area: Provides a 210 x 260 mm observation area.​

• Filter: Equipped with a Quartz UV filter.​

• Body Construction: Built with an aluminum pressure die-cast body finished in black powder coating.​

• UV Protection Shield: Comes with a safety shield for UV protection.​

3. Model: HLSI-UVT-40

• Wavelength: Fixed at 302 nm.​

• Number of Tubes: Utilizes LED-based illumination.​

• Wattage: LED-based system.​

• Detection Limit: Detects down to 0.01 ng of stained DNA.​

• Viewing Area: Compact 150 x 80 mm area suitable for smaller samples.​

• Filter: Features a Quartz UV filter.​

• Body Construction: Constructed with an aluminum pressure die-cast body with a black powder-coated finish.​

• UV Protection Shield: Includes a protective shield for user safety.​

All models are designed with a sleek, portable aesthetic, ensuring both functionality and ease of use in research settings. The aluminum construction provides durability, while the black powder coating adds a professional finish. The inclusion of a Quartz UV filter and UV protection shield underscores the commitment to user safety and optimal performance.
